CAMERAS

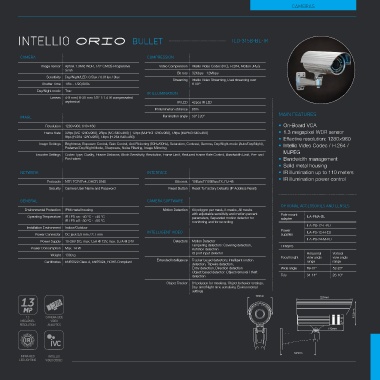

INTELLIO BULLET ILD-315B-BL-IR
CAMERA COMPRESSION
Image sensor Aptina 1.3MP, WDR, 1/3” CMOS Progressive Video Compression Intellio Video Codec (IVC), H.264, Motion JPEG
Scan Bit rate
Sensitivity 32Kbps - 12Mbps
Shutter Time Day/Night/LED: 0.5lux / 0.01lux / 0lux Streaming
Day/Night mode Intellio Video Streaming, Dual streaming over
1/6s - 1/20,000s RTSP
Lenses
True IR ILLUMINATION
4-9 mm | 8-20 mm 1/3” 1:1.4 IR compensated IR LED 42pcs IR LED
aspherical IR illumination distance 60m
50° | 20°
IMAGE Illumination angle MAIN FEATURES
Resolution 1280×960; 640×480 • On-Board VCA
Frame Rate • 1.3 megapixel WDR sensor
22fps (IVC 1280×960), 25fps (IVC 640×480) | 12fps (MJPEG 1280×960), 18fps (MJPEG 640×480) • Effective resolution: 1280×960
Image Settings 8fps (H.264 1280×960), 14fps (H.264 640×480) • Intellio Video Codec / H.264 /
Encoder Settings Brightness, Exposure Control, Gain Control, Anti Flickering (50Hz/60Hz), Saturation, Contrast, Gamma, Day/Night mode (Auto/Day/Night), MJPEG
Preferred Day/Night Mode, Sharpness, Noise Filtering, Image Mirroring • Bandwidth management
• Solid metal housing
Codec Type, Quality, I-frame Distance, Block Sensitivity, Resolution, Frame Limit, Reduced Frame Rate Control, Bandwidth Limit, Pre- and • IR illumination up to 110 meters
Post-alarm • IR illumination power control
NETWORK INTERFACE
Protocols NTP, TCP/IPv4, DHCP, DNS Ethernet 10BaseT/100BaseTX, RJ-45
Security Camera User Name and Password Reset Button Reset To Factory Defaults (IP Address Reset)
GENERAL CAMERA SOFTWARE
Environmental Protection IP66 metal housing Motion Detection 64 polygon per mask, 8 masks, All masks OPTIONAL ACCESSORIES AND LENSES
Operating Temperature IR LED on: -40 °C - +40 °C with adjustable sensitivity and motion percent
IR LED off: -30 °C - +55 °C parameters, Separated motion detector for Pole mount ILA-PMA-BL
Installation Environment Indoor/Outdoor monitoring and for recording adapter
Power Connector DC jack 5,5 mm / 2,1 mm ILA-PS-12-L-EU
Power Supply 10-26V DC, max.1,5A @ 12V, max. 0,7A @ 24V INTELLIGENT VIDEO Power ILA-PS-12-H-EU
Max. 14 W supplies ILA-PS-24-M-EU
Power Consumption 1300 g Detectors Motion Detector
Weight EN55022 Class A, EN55024, ROHS Compliant Tampering detectors: Covering detection, LENSES
Rotation detection Horizontal Vertical
Certificates IO port input detector Focal lenght view angle view angle
range range
Extended Intelligence Tracker based detectors: Intelligent motion Wide angle
detection, Tripwire detection, Tele 69-31° 52-23°
Entry detection, Direction detection
Object based detector: Object removal / theft 34-14° 26-10°
detection
Object Tracker 64 polygon for masking, Object behavior settings,
Day-time/Night-time sensitivity, Environmental
settings
1.3
1.3 CAMERA-SIDE
MEGAPIXEL VIDEO
RESOLUTION
ANALYTICS
INFRA-RED INTELLIO
LEDLIGHTING VIDEO CODEC
