CAMERAS

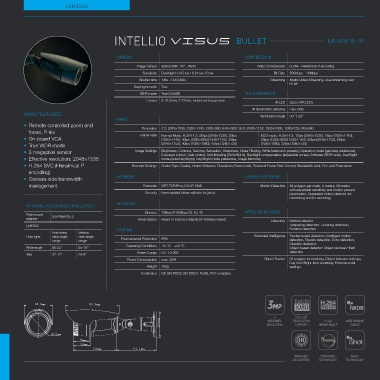

INTELLIO BULLET ILD-420B-BL-IR
CAMERA COMPRESSION
Image Sensor Aptina 3MP 1/3” , WDR Video Compression H.264 - Hierarhical P encoding
Sensitivity Day/Night: 0.65 lux / 0.01 lux / 0 lux Bit Rate
1/6s - 1/20,000s 500Kbps - 18Mbps
Shutter time True Streaming
Day/night mode True (100dB) Intellio Video Streaming, Dual streaming over
3-10.5mm; 7-22mm, motorized focus/zoom RTSP
WDR mode
Lenses IR ILLUMINATION
MAIN FEATURES IMAGE IR LED 3pcs of IR LEDs
IR illumination distance max. 60m
• Remote controlled zoom and 50° | 20°
focus, P-iris Illumination angle
• On-board VCA Resolution 4:3: 2048×1536, 1920×1440, 1280×960; 640×480 | 16:9: 2048×1152, 1920×1080, 1280x720, 640x360
• True WDR mode
• 3 megapixel sensor Frame Rate Normal Mode: H.264 4:3: 25fps (2048×1536), 30fps ECO mode: H.264 4:3: 15fps (2048×1536), 18fps (1920×1440),
• Effective resolution: 2048×1536 (1920×1440), 40fps (1280×960) | H.264 16:9: 35fps 25fps (1280×960) | H.264 16:9: 20fps (2048×1152), 24fps
• H.264 SVC (Hierarhical P (2048×1152), 40fps (1920×1080), 45fps (1280×720) (1920×1080), 32fps (1280×720)
encoding) Image Settings Brightness, Contrast, Gamma, Saturation, Sharpness, Noise Filtering, White balance (5 presets), Operation mode (gain/exp preference),
• Camera-side bandwidth Exposure control, Gain control, Anti-flickering (50Hz/60Hz), Backlight compensation (adjustable zones), Software WDR mode, Day/Night
mode (Auto/Day/Night), Day/Night mode preference, Image Mirroring
management
Encoder Settings Codec Type, Quality, I-frame Distance, Resolution, Frame Limit, Reduced Frame Rate Control, Bandwidth Limit, Pre- and Post-alarm
NETWORK CAMERA SOFTWARE
Protocols NTP, TCP/IPv4, DHCP, DNS Motion Detection 64 polygon per mask, 8 masks, All masks
Security Kameraoldali felhasználónév és jelszó with adjustable sensitivity and motion percent
parameters, Separated motion detector for
monitoring and for recording
OPTIONAL ACCESSORIES AND LENSES INTERFACE
Pole mount Ethernet 10BaseT/100BaseTX, RJ-45 INTELLIGENS VIDEÓ
adapter Reset Button Reset To Factory Defaults (IP Address Reset)
LENSES ILA-PMA-BL-2
Lens type Horizontal Vertical GENERAL Detectors Motion Detector
view angle view angle Extended Intelligence Tampering detectors: Covering detection,
Wide angle range range Environmental Protection IP65 Rotation detection
Tele Operating Conditions -45 °C - +50 °C Object Tracker
86-25° 65-18° Power Supply DC: 10-26V Tracker based detectors: Intelligent motion
Power Consumption max. 20W detection, Tripwire detection, Entry detection,
37-12° 28-9° Weight 760g Direction detection
Certificates CE: EN 55022, EN 55024, RoHS, FCC compliant Object based detector: Object removal / theft
detection
64 polygon for masking, Object behavior settings,
Day-time/Night-time sensitivity, Environmental
settings
3 FULL HD H.264 WIDEDYNAMIC
MEGAPIXEL RESOLUTION HIERARCHICAL P RANGE
RESOLUTION
SUPPORT
INFRA-RED ITRACKING ISHOT
LEDLIGHTING TECHNOLOGY TECHNOLOGY
