CAMERAS

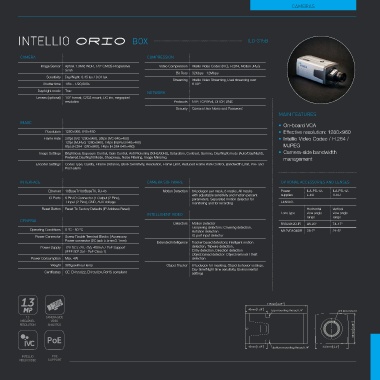

INTELLIO BOX ILD-315B
CAMERA COMPRESSION
Image Sensor Aptina 1.3MP, WDR, 1/3” CMOS Progressive Video Compression Intellio Video Codec (IVC), H.264, Motion JPEG
Scan Bit Rate
Sensitivity 32Kbps - 12Mbps
Shutter time Day/Night: 0.45 lux / 0.01 lux Streaming
Day/night mode Intellio Video Streaming, Dual streaming over
Lenses (optional) 1/6s - 1/20,000s RTSP
True NETWORK
1/3” format, C/CS mount, DC iris, megapixel Protocols NTP, TCP/IPv4, DHCP, DNS
resolution Security Camera User Name and Password
IMAGE MAIN FEATURES
Resolution 1280×960; 640×480 • On-board VCA
Frame Rate • Effective resolution: 1280×960
20fps (IVC 1280×960), 25fps (IVC 640×480) • Intellio Video Codec / H.264 /
Image Settings 12fps (MJPEG 1280×960), 18fps (MJPEG 640×480)
Encoder Settings 8fps (H.264 1280×960), 14fps (H.264 640×480) MJPEG
• Camera-side bandwidth
Brightness, Exposure Control, Gain Control, Anti Flickering (50Hz/60Hz), Saturation, Contrast, Gamma, Day/Night mode (Auto/Day/Night),
Preferred Day/Night Mode, Sharpness, Noise Filtering, Image Mirroring management
Codec Type, Quality, I-frame Distance, Block Sensitivity, Resolution, Frame Limit, Reduced Frame Rate Control, Bandwidth Limit, Pre- and
Post-alarm
INTERFACE CAMERA SOFTWARE OPTIONAL ACCESSORIES AND LENSES
Ethernet 10BaseT/100BaseTX, RJ-45 Motion Detection 64 polygon per mask, 8 masks, All masks Power ILA-PS-12- ILA-PS-12-
IO Ports with adjustable sensitivity and motion percent supplies L-EU H-EU
6 Pin IO Connector (1 Output (2 Pins), parameters, Separated motion detector for LENSES
Reset Button 1 Input (2 Pins), GND, AUX Voltage monitoring and for recording Horizontal Vertical
Lens type view angle view angle
Reset To Factory Defaults (IP Address Reset) range range
RV02812D.IR 98-23° 74-17°
INTELLIGENT VIDEO M12VD1040IR 28-7° 21-5°
GENERAL Detectors Motion Detector
Extended Intelligence Tampering detectors: Covering detection,
Operating Conditions 0 °C - 50 °C Rotation detection
Power Connector Object Tracker IO port input detector
Screw Fixable Terminal Blocks | Accessory:
Power Supply Power connector (DC jack 5.5mm/2.1mm) Tracker based detectors: Intelligent motion
detection, Tripwire detection,
Power Consumption 12V DC (+2V, -3V), 400mA / PoE Support Entry detection, Direction detection
Weight (IEEE 802.3af - PoE Class 1) Object based detector: Object removal / theft
detection
Certificates Max. 4W
64 polygon for masking, Object behavior settings,
380g (without lens) Day-time/Night-time sensitivity, Environmental
settings
CE: EN 55022, EN 55024, RoHS compliant
1.3
1.3 CAMERA-SIDE
MEGAPIXEL VIDEO
RESOLUTION
ANALYTICS
INTELLIO POE
VIDEO CODEC SUPPORT
