Page 8 - Intellio Catalog 2015
P. 8
CAMERAS

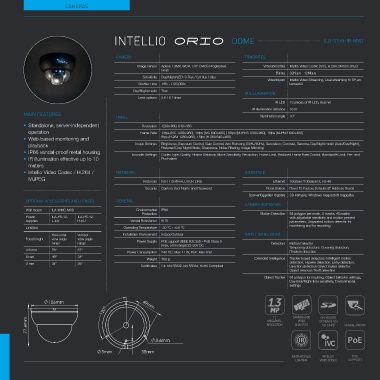

INTELLIO DOME ILD-315B-IR-MVD
CAMERA TÖMÖRÍTÉS
Image sensor Aptina 1.3MP, WDR, 1/3” CMOS Progressive Videotömörítés Intellio Video Codec (IVC), H.264, Motion JPEG
Scan Bitráta
Sensitivity 32Kbps - 12Mbps
Shutter Time Day/Night/LED: 0.7lux / 0,01lux / 0lux Videofolyam
Day/Night mode Intellio Video Streaming, Dual streaming RTSP-en
Lens options 1/6s - 1/20,000s keresztül
True IR ILLUMINATION
3.6 / 6 / 8mm
MAIN FEATURES IMAGE IR LED 13 pieces of IR LED, 850 nm
IR illumination distance 10 m
• Standalone, server-independent 70°
operation Illumination angle
• Web-based monitoring and Resolution 1280×960; 640×480
playback
Frame Rate 13fps (IVC 1280×960), 18fps (IVC 640×480) | 10fps (MJPEG 1280×960), 15fps (MJPEG 640×480)
• IP66 vandal-proof metal housing 8fps (H.264 1280×960), 15fps (H.264 640×480)
• IR illumination effective up to 10
Image Settings Brightness, Exposure Control, Gain Control, Anti Flickering (50Hz/60Hz), Saturation, Contrast, Gamma, Day/Night mode (Auto/Day/Night),
meters Preferred Day/ Night Mode, Sharpness, Noise Filtering, Image Mirroring
• Intellio Video Codec / H.264 /
Encoder Settings Codec Type, Quality, I-frame Distance, Block Sensitivity, Resolution, Frame Limit, Reduced Frame Rate Control, Bandwidth Limit, Pre- and
MJPEG Post-alarm
NETWORK INTERFACE
Protocols NTP, TCP/IPv4, DHCP, DNS Ethernet 10BaseT/100BaseTX, RJ-45
Security Camera User Name and Password Reset Button Reset To Factory Defaults (IP Address Reset)
Szerverfüggetlen rögzítés SD kártyára, Windows megosztott mappába
OPTIONAL ACCESSORIES AND LENSES GENERAL CAMERA SOFTWARE
Wall mount ILA-WMC-MVD Environmental IP66 Motion Detection 64 polygon per mask, 8 masks, All masks
Power Protection with adjustable sensitivity and motion percent
supplies ILA-PS-12- ILA-PS-12- IK10 parameters, Separated motion detector for
LENSES L-EU H-EU Vandal Resistance -30 °C - +50 °C monitoring and for recording
Operating Temperature Indoor/Outdoor
Focal lenght Horizontal Vertical Installation Environment PoE support (IEEE 802.3af) – PoE Class 0 INTELLIGENS VIDEÓ
view angle view angle (max. 50m range) 22-50V DC
3.6 mm range range Power Supply 24V DC: Max 11 W, PoE: Max 9 W Detectors Motion Detector
6 mm 460 g Extended Intelligence Tampering detectors: Covering detection,
8 mm 76° 57° Power Consumption CE: EN 55022, EN 55024, RoHS Compliant Rotation detection
Weight Object Tracker
46° 34° Tracker based detectors: Intelligent motion
Certificates detection, Tripwire detection, Entry detection,
34° 26° Direction detection Object based detector:
Object removal / theft detection
64 polygon for masking, Object behavior settings,
Day-time/Night-time sensitivity, Environmental
settings
1.3
1.3 CAMERA-SIDE ON-BOARD VANDAL-PROOF
MEGAPIXEL VIDEO STORAGE ON
RESOLUTION
ANALYTICS SD CARD
INFRA-REDLED INTELLIO POE
LIGHTING VIDEO CODEC SUPPORT
