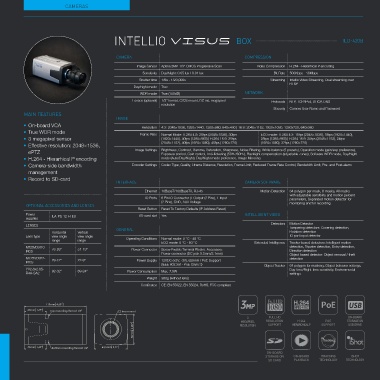

Page 10 - Intellio Catalog 2015
P. 10
CAMERAS
INTELLIO BOX ILD-420B
CAMERA COMPRESSION
Image Sensor Aptina 3MP 1/3” CMOS Progressive Scan Video Compression H.264 - Hierarhical P encoding
Sensitivity Day/Night: 0.65 lux / 0.01 lux Bit Rate
1/6s - 1/20,000s 500Kbps - 18Mbps
Shutter time True Streaming
Day/night mode True (100dB) Intellio Video Streaming, Dual streaming over
1/3” format, C/CS mount, DC iris, megapixel RTSP
WDR mode resolution
Lenses (optional) NETWORK
Protocols NTP, TCP/IPv4, DHCP, DNS
Security Camera User Name and Password
MAIN FEATURES IMAGE
• On-board VCA Resolution 4:3: 2048×1536, 1920×1440, 1280×960; 640×480 | 16:9: 2048×1152, 1920×1080, 1280x720, 640x360
• True WDR mode
• 3 megapixel sensor Frame Rate Normal Mode: H.264 4:3: 25fps (2048×1536), 30fps ECO mode: H.264 4:3: 15fps (2048×1536), 18fps (1920×1440),
• Effective resolution: 2048×1536, (1920×1440), 40fps (1280×960) | H.264 16:9: 35fps 25fps (1280×960) | H.264 16:9: 20fps (2048×1152), 24fps
(2048×1152), 40fps (1920×1080), 45fps (1280×720) (1920×1080), 32fps (1280×720)
ePTZ
• H.264 - Hierarhical P encoding Image Settings Brightness, Contrast, Gamma, Saturation, Sharpness, Noise Filtering, White balance (5 presets), Operation mode (gain/exp preference),
• Camera-side bandwidth Exposure control, Gain control, Anti-flickering (50Hz/60Hz), Backlight compensation (adjustable zones), Software WDR mode, Day/Night
mode (Auto/Day/Night), Day/Night mode preference, Image Mirroring
management
• Record to SD-card Encoder Settings Codec Type, Quality, I-frame Distance, Resolution, Frame Limit, Reduced Frame Rate Control, Bandwidth Limit, Pre- and Post-alarm
INTERFACE CAMERA SOFTWARE
Ethernet 10BaseT/100BaseTX, RJ-45 Motion Detection 64 polygon per mask, 8 masks, All masks
IO Ports 6 Pin IO Connector (1 Output (2 Pins), 1 Input with adjustable sensitivity and motion percent
OPTIONAL ACCESSORIES AND LENSES parameters, Separated motion detector for
(2 Pins), GND, AUX Voltage monitoring and for recording
Reset Button Reset To Factory Defaults (IP Address Reset)
Power ILA-PS-12-H-EU SD-card slot Yes INTELLIGENT VIDEO
supplies
LENSES Horizontal Vertical GENERAL Detectors Motion Detector
view angle view angle Extended Intelligence Tampering detectors: Covering detection,
Lens type range range Operating Conditions Normal mode: 0 °C - 45 °C Rotation detection
ECO mode: 0 °C - 50 °C Object Tracker IO port input detector
M125VD3410- 76-26° 51-19°
IRCS Power Connector Screw Fixable Terminal Blocks. Accessory: Tracker based detectors: Intelligent motion
M125VD922- 29-12° 22-9° Power connector (DC jack 5.5mm/2.1mm) detection, Tripwire detection, Entry detection,
IRCS Direction detection
YV2.8x2.8S- 92-32° 69-24° Power Supply 12VDC (+2V, -3V), 625mA / PoE Support Object based detector: Object removal / theft
R4A-SA2 (IEEE 802.3af - PoE Class 3) detection
Power Consumption Max. 7,5W 64 polygon for masking, Object behavior settings,
Weight 380g (without lens) Day-time/Night-time sensitivity, Environmental
settings
Certificates CE: EN 55022, EN 55024, RoHS, FCC compliant
3 FULL HD H.264 POE ON-BOARD
MEGAPIXEL RESOLUTION HIERARCHICALP SUPPORT STORAGE ON
RESOLUTION USB DRIVE
SUPPORT
ON-BOARD ON-BOARD ITRACKING ISHOT
STORAGE ON PLAYBACK TECHNOLOGY TECHNOLOGY
SD CARD
