CAMERAS

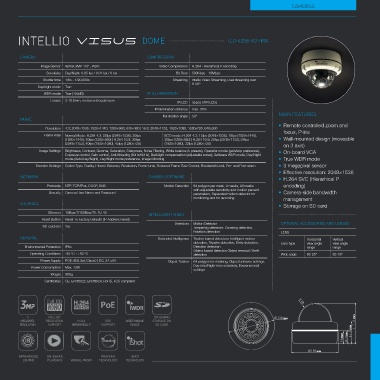

INTELLIO DOME ILD-420B-VD-IRW
CAMERA COMPRESSION
Image Sensor Aptina 3MP 1/3” , WDR Video Compression H.264 - Hierarhical P encoding
Sensitivity Day/Night: 0.65 lux / 0.01 lux / 0 lux Bit Rate
1/6s - 1/20,000s 500Kbps - 18Mbps
Shutter time True Streaming
Day/night mode True (100dB) Intellio Video Streaming, Dual streaming over
3-10.5mm, motorized focus/zoom RTSP
WDR mode
Lenses IR ILLUMINATION
IMAGE IR LED 35pcs of IR LEDs MAIN FEATURES
IR illumination distance max. 35m
50° • Remote controlled zoom and
Illumination angle focus, P-iris
Resolution 4:3: 2048×1536, 1920×1440, 1280×960; 640×480 | 16:9: 2048×1152, 1920×1080, 1280x720, 640x360 • Wall-mounted design (moveable
on 3 axis)
Frame Rate Normal Mode: H.264 4:3: 25fps (2048×1536), 30fps ECO mode: H.264 4:3: 15fps (2048×1536), 18fps (1920×1440),
(1920×1440), 40fps (1280×960) | H.264 16:9: 35fps 25fps (1280×960) | H.264 16:9: 20fps (2048×1152), 24fps • On-board VCA
(2048×1152), 40fps (1920×1080), 45fps (1280×720) (1920×1080), 32fps (1280×720) • True WDR mode
• 3 megapixel sensor
Image Settings Brightness, Contrast, Gamma, Saturation, Sharpness, Noise Filtering, White balance (5 presets), Operation mode (gain/exp preference), • Effective resolution: 2048×1536
Exposure control, Gain control, Anti-flickering (50Hz/60Hz), Backlight compensation (adjustable zones), Software WDR mode, Day/Night • H.264 SVC (Hierarhical P
mode (Auto/Day/Night), Day/Night mode preference, Image Mirroring
encoding)
Encoder Settings Codec Type, Quality, I-frame Distance, Resolution, Frame Limit, Reduced Frame Rate Control, Bandwidth Limit, Pre- and Post-alarm • Camera-side bandwidth
NETWORK CAMERA SOFTWARE management
• Storage on SD card
Protocols NTP, TCP/IPv4, DHCP, DNS Motion Detection 64 polygon per mask, 8 masks, All masks
Security Camera User Name and Password with adjustable sensitivity and motion percent
parameters, Separated motion detector for
monitoring and for recording
NTERFACE
Ethernet 10BaseT/100BaseTX, RJ-45 INTELLIGENT VIDEO
Reset Button Reset To Factory Defaults (IP Address Reset)
SD-card slot Yes Detectors Motion Detector OPTIONAL ACCESSORIES AND LENSES
Extended Intelligence Tampering detectors: Covering detection,
GENERAL Rotation detection LENS Horizontal Vertical
Object Tracker Lens type view angle view angle
Environmental Protection IP65 Tracker based detectors: Intelligent motion Wide angle range range
Operating Conditions -30 °C - +50 °C detection, Tripwire detection, Entry detection,
Power Supply POE: 802.3af, Class0 | DC: 24-50V Direction detection 86-25° 65-18°
Power Consumption Max. 13W Object based detector: Object removal / theft
Weight 900g detection
Certificates CE: EN 55022, EN 55024, RoHS, FCC compliant
64 polygon for masking, Object behavior settings,
Day-time/Night-time sensitivity, Environmental
settings
3 FULL HD H.264 POE WIDEDYNAMIC ON-BOARD
MEGAPIXEL RESOLUTION HIERARCHICAL P SUPPORT RANGE STORAGE ON
RESOLUTION
SUPPORT SD CARD
INFRA-REDLED ON-BOARD VANDAL-PROOF ITRACKING ISHOT
LIGHTING PLAYBACK TECHNOLOGY TECHNOLOGY
