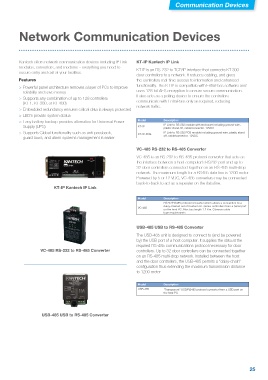

Communication Devices
Network Communication Devices
Kantech offers network communication devices including IP Link KT-IP Kantech IP Link
modules, converters, and modems - everything you need to
secure entry and exit at your facilities. KT-IP is an RS-232 to TCP/IP interface that connects KT-300
door controllers to a network. It reduces cabling, and gives
Features the controllers real-time access to information and enhanced
functionality. The KT-IP is compatible with EntraPass software and
>> Powerful panel architecture removes a layer of PCs to improve uses 128-bit AES encryption to ensure secure communication.
reliability and save money It also acts as a polling device to ensure the controllers
communicate with EntraPass only as required, reducing
>> Supports any combination of up to 128 controllers network traffic.
(KT-1, KT-300, or KT-400)
Model Description
>> Embedded redundancy ensures critical data is always protected KT-IP
IP Link to RS-232 module with enclosure including ground wire,
>> LED’s provide system status KT-IP-PCB plastic stand off, cable/connector. 12VDC
>> Easy battery backup provides alternative for Universal Power IP Link to RS-232 PCB module including ground wire, plastic stand
Supply (UPS) off, cable/connector. 12VDC
>> Supports Global functionality such as anti-passback,
guard tours, and alarm systems management is easier
KT-IP Kantech IP Link VC-485 RS-232 to RS-485 Converter
VC-485 is an RS-232 to RS-485 protocol converter that acts as
the interface between a host computer’s RS232 port and up to
32 door controllers connected together on an RS-485 multi-drop
network. The maximum length for a RS485 data line is 1200 meter
Powered by 5 or 12 VDC, VC-485 converters may be connected
back-to-back to act as a repeater on the data line.
Model Description
VC-485
RS232/RS485 protocol converter which allows a connection to a
daisy chained set of Kantech KT-Series controllers from a Serial port
on the host PC. Max bus length 1.2 Km. Observe cable
type requirements
VC-485 RS-232 to RS-485 Converter USB-485 USB to RS-485 Converter
The USB-485 unit is designed to connect to (and be powered
by) the USB port of a host computer. It supplies the data at the
required RS-485 communications protocol necessary for door
controllers. Up to 32 door controllers can be connected together
on an RS-485 multi-drop network. Installed between the host
and the door controllers, the USB-485 permits a “daisy-chain”
configuration thus extending the maximum transmission distance
to 1200 meter
Model Description
USB-485
"Transparent" USB/RS485 protocol converter from a USB port on
the host PC
USB-485 USB to RS-485 Converter
25
