Page 25 - Kantech-Product_Guide_2018

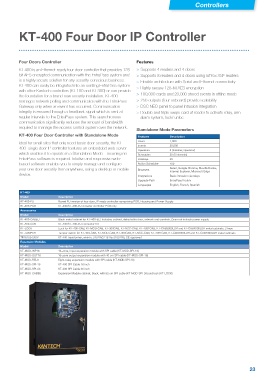

P. 25
Controllers
KT-400 Four Door IP Controller
Four Doors Controller Features
KT-400 is an Ethernet-ready four-door controller that provides 128- >> Supports 4 readers and 4 doors
bit AES encrypted communication with the EntraPass system and >> Supports 8 readers and 4 doors using ioProx XSF readers
is a highly secure solution for any security-conscious business. >> Flexible architecture with Serial and Ethernet connectivity
KT-400 can easily be integrated into an existing EntraPass system >> Highly secure 128-bit AES encryption
with other Kantech controllers (KT-100 and KT-300) or can provide >> 100,000 cards and 20,000 stored events in offline mode
the foundation for a brand new security installation. KT-400 >> 256 outputs (four onboard) provide scalability
manages network polling and communicates with the EntraPass >> DSC NEO panel to panel intrusion integration
Gateway only when an event has occurred. Communication >> Double and triple swipe card at reader to activate relay, arm
integrity is ensured through a heartbeat signal which is sent at
regular intervals to the EntraPass system. This asynchronous alarm system, lock/ unloc
communication significantly reduces the amount of bandwidth
required to manage the access control system over the network. Standalone Mode Parameters
KT-400 Four Door Controller with Standalone Mode Features Description
Users 1,000
Ideal for small sites that only need basic door security, the KT- Events 20,000
400 single door IP controller features an embedded web server Operators 2 (Installer, Operator)
which enables it to operate in a Standalone Mode – meaning no Schedules 20 (5 intervals)
EntraPass software is required. Intuitive and responsive web- Holidays 25
based software enables you to simply manage and configure Action Scheduler 100
your one door security from anywhere, using a desktop or mobile Safari, Google Chrome, Mozilla Firefox,
device. Browsers Internet Explorer, Microsoft Edge
Basic intrusion via relays
Integrations EntraPass/ hattrix
Upgrade Path English, French, Spanish
Languages
KT-400 Description
Model Boxed EU version of four door, IP ready controller comprising PCB, Housing and Power Supply
KT-400-EU KT-400/KT-400-EU 4 reader controller PCB only
KT-400-PCB
Accessories Description
Model Black metal cabinet for KT-400-EU. Includes cabinet, detachable door, artwork and camlock. Does not include power supply
KT-400-CABEU KT-400/KT-400-EU connector Kit
KT-400-CON Lock for KT-400-CAB, KT-MOD-CAB, KT-300CAB, KT-NCC-CAB, KT-4051CAB, KT-CAB3000LDR and KT-CAB4000LDR metal cabinets, 2 keys
KT-LOCK Tamper switch for KT-400-CAB, KT-MOD-CAB, KT-300CAB, KT-NCC-CAB, KT-4051CAB, KT-CAB3000LDR and KT-CAB4000LDR metal cabinets
KT-TAMPER KT-400 transformer, wire-in, 240 VAC/ 16 Vac (100 VA), CE approved
TR16100-240V
Expansion Modules Description
Model 16-zone, input expansion module with SPI cable (KT-MOD-SPI-16)
KT-MOD-INP16 16-zone output expansion module with 40 cm SPI cable (KT-MOD-SPI-16)
KT-MOD-OUT16 Eight-relay expansion module with SPI cable (KT-MOD-SPI-16)
KT-MOD-REL8 KT-400 SPI Cable 16 inch
KT-MOD-SPI-16 KT-400 SPI Cable 36 inch
KT-MOD-SPI-36 Expansion Module cabinet, black, with 92 cm SPI cable (KT-MOD-SPI-36) and lock (KT-LOCK)
KT-MOD-CABEU
23
