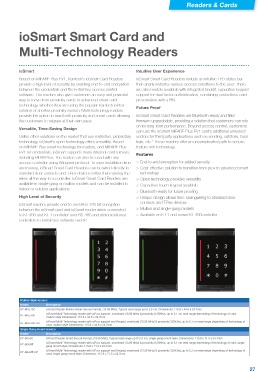

Readers & Cards
ioSmart Smart Card and
Multi-Technology Readers
ioSmart Intuitive User Experience
Based on MIFARE Plus EV1, Kantech’s ioSmart Card Readers ioSmart Smart Card Readers include an intuitive LED status bar
provide a high level of security by enabling end-to-end encryption that clearly indicates various access conditions to the user. There
between the credentials and the EntraPass access control are also models available with integrated backlit, capacitive keypad
software. The readers also give customers an easy and powerful support for dual factor authentication, combining contactless card
way to move from proximity cards to advanced smart card presentation with a PIN.
technology, whether they are using the popular Kantech ioProx
solution or another proximity system. Multi-technology readers Future Proof
provide the option to read both proximity and smart cards allowing
the customers to migrate at their own pace. ioSmart Smart Card Readers are Bluetooth-ready and field
firmware upgradeable, providing a solution that customers can rely
Versatile, Time-Saving Design on for long-term performance. Beyond access control, customers
can use the ioSmart MIFARE Plus EV1 card’s additional unlocked
Unlike other solutions on the market that use restrictive, proprietary sectors for third party applications such as vending, cafeteria, bus/
technology, ioSmart’s open technology offers versatility. Based train, etc.* These readers offer an uncomplicated path to secure,
on MIFARE Plus smart technology for readers, and MIFARE Plus feature-rich technology.
EV1 for credentials, ioSmart supports many different card formats,
including HID® Prox. The reader can also be used with any Features
access controller using Wiegand protocol. To save installation time
and money, ioSmart Smart Card Readers can be wired directly to >> End-to-end encryption for added security
standard door contacts and T.Rex devices rather than running the >> Cost-effective solution to transition from prox to advanced smart
wires all the way to a controller. ioSmart Smart Card Readers are
available in single-gang or mullion models and can be installed in technology
indoor or outdoor applications. >> Open technology provides versatility
>> Capacitive touch keypad available
High Level of Security >> Bluetooth-ready for future proofing
>> Unique design allows time-savingwiring to standard door
ioSmart readers provide end-to-end AES 128-bit encryption
between the ioSmart card and ioSmart reader when connected contacts and T.Rex devices
to KT-400 and KT-1 controller over RS-485 and aforementioned >> Mullion and single-gang models
controllers to EntraPass software over IP. >> Available on KT-1 and newer KT-400controller
Mullion Style readers
Model Description
KT-MUL-SC ioSmart Reader Mullion Smart Secure Format, (13.56 MHz), Typical read range up to 2,8 cm, Dimensions: 115.8 x 44.6 x 24.7mm
KT-MUL-MT ioSmart Multi-Technology reader with ioProx support, smartcard (13,56 MHz) & proximity (125KHz), up to 5,1 cm read range depending of technology of card,
mullion style Dimensions: 115.8 x 44.6 x 24.7mm
KT-MUL-MT-KP ioSmart Multi-Technology reader with ioProx support and Keypad, smartcard (13,56 MHz) & proximity (125KHz), up to 5,1 cm read range depending of technology of
card, mullion style Dimensions: 115.8 x 44.6 x 24.7mm
Single Gang mount readers
Model Description
KT-SG-SC ioSmart Reader Smart Secure Format, (13.56 MHz), Typical read range up to 2,8 cm, single gang mount style, Dimensions: 115.8 x 71,5 x 24.7mm
KT-SG-MT ioSmart Multi-Technology reader with ioProx support, smartcard (13,56 MHz) & proximity (125KHz), up to 5,1 cm read range depending of technology of card, single
gang mount style, Dimensions: 115.8 x 71,5 x 24.7mm
KT-SG-MT-KP ioSmart Multi-Technology reader with ioProx support and Keypad, smartcard (13,56 MHz) & proximity (125KHz), up to 5,1 cm read range depending of technology of
card, single gang mount style, Dimension: 115.8 x 71,5 x 24.7mm
27
