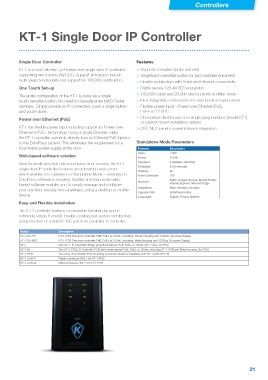

Page 23 - Kantech-Product_Guide_2018
P. 23
Controllers
KT-1 Single Door IP Controller
Single Door Controller Features
KT-1 is a cost-effective, yet feature rich single door IP controller, >> Supports 2 readers (entry and exit)
supporting two readers (IN/OUT). Support all features include >> Singletouch-sensitive button for fast controller enrolment
multi-swipe functionality and support for 100,000 cardholders. >> Flexible architecture with Serial and Ethernet connectivity
>> Highly secure 128-bit AES encryption
One Touch Set-up >> 100,000 cards and 20,000 stored events in offline mode
>> Interchangeable connections for easy install or replacement
The entire configuration of the KT-1 is done via a single >> Flexible power input – Power over Ethernet (PoE),
touch-sensitive button. No need to manually enter MAC/ Serial
numbers. Simply provide an IP connection, push a single button PoE+ or 12 VDC
and you’re done. >> Choosefrom flushmount on a single gang backbox (model KT1)
Power over Ethernet (PoE) or cabinet mount installation options
>> DSC NEO panel to panel intrusion integration
KT-1 has flexible power input including support for Power over
Ethernet & PoE+ technology. Using a single Ethernet cable, Standalone Mode Parameters
the KT-1 controller connects directly from an Ethernet PoE-injector
to the EntraPass system. This eliminates the requirement for a Features Description
local mains power supply at the door. Users 1,000
Events 20,000
Web-based software solution Operators 2 (Installer, Operator)
Schedules 20 (5 intervals)
Ideal for small sites that only need basic door security, the KT-1 Holidays 25
single door IP controller features an embedded web server Action Scheduler 100
which enables it to operate in a Standalone Mode – meaning no Safari, Google Chrome, Mozilla Firefox,
EntraPass software is required. Intuitive and responsive web- Browsers Internet Explorer, Microsoft Edge
based software enables you to simply manage and configure Basic intrusion via relays
your one door security from anywhere, using a desktop or mobile Integrations EntraPass/ hattrix
device. Upgrade Path English, French, Spanish
Languages
Easy and Flexible Installation
The KT-1 controller features a removable terminal clip and is
extremely simple to install. Flexible cabling and system architecture
using Ethernet or serial RS-485 port from controller to controller.
Model Description
KT-1-EU-PC KT-1-PCB One door controller PoE, PoE+ or 12Vdc, including: Plastic Housing and 13,8Vdc 3A power Supply
KT-1-EU-MET KT-1-PCB One door controller PoE, PoE+ or 12Vdc, including: Metal Housing and 13,8Vdc 3A power Supply
KT-1 One KT-1, IP Controller Single gang flush Mount, PoE, PoE+ or 12Vdc, (KT-1 only, no PSU)
KT-1-M One KT-1-PCB, IP Controller PCB with metal cabinet PoE, PoE+ or 12Vdc, including KT-1-PCB and Metal housing, No PSU)
KT-1-PCB One Door IP Controller PCB including connector board (Compatible with KT-1-CAB-M or P)
KT-1-CAB-P Plastic enclosure ONLY for KT-1-PCB
KT-1-CAB-M Metal enclosure ONLY for KT-1-PCB
21
