Controllers

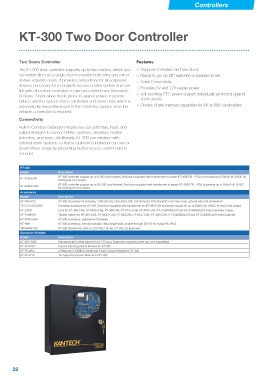

KT-300 Two Door Controller
Two Doors Controller Features
The KT-300 door controller supports up to two readers, which you >> Supports 2 readers and two doors
can install either on a single door to monitor both entry and exit or >> Ready to go, no DIP switches or jumpers to set
on two separate doors. It provides connections for all peripheral >> Serial Connectivity
devices necessary for a complete access control system and can >> Provides 5V and 12V reader power
link with other door controllers to give you control over thousands >> self-resetting PTC power outputs individually protected against
of doors. Stand-alone mode protects against power or system
failures and the system stores cardholder and event data, which is short circuits
automatically transmitted back to the EntraPass system once the >> Choice of two memory capacities for 8K or 56K cardholders
network connection is restored.
Connectivity
Built-in Combus expansion means you can add relay, input, and
output modules to connect HVAC systems, elevators, motion
detectors, and more. Additionally, KT-300 can interface with
external alarm systems so that an authorized individual can arm or
disarm them simply by presenting his/her access control card to
a reader.
KT-300 Description
Model KT-300 controller support up to 8, 000 card holders. Enclosure supplied with transformer to power KT-300PCB + PSU to provide up to 500mA @ 12VDC for
locking per lock output
KT-300EU-8K KT-300 controller support up to 56, 000 card holders. Enclosure supplied with transformer to power KT-300PCB + PSU to provide up to 500mA @ 12VDC
for locking per lock output
KT-300EU-56K
Description
Accessories KT-300 Accessory kit including: 1.0K ohm (2), 5.6K ohms (10), 120 ohms (2), PCB standoff, lock hole cover, ground wire and screwdriver
Model European enclosure for KT-300. Enclosure supplied with transformer for KT-300 PCB and power supply for up to 500mA @ 12VDC for each lock output
KT-300-ACC Lock for KT-400-CAB, KT-MOD-CAB, KT-300CAB, KT-NCC-CAB, KT-4051CAB, KT-CAB3000LDR and KT-CAB4000LDR metal cabinets, 2 keys
TYCO-A-ACCESS Tamper switch for KT-400-CAB, KT-MOD-CAB, KT-300CAB, KT-NCC-CAB, KT-4051CAB, KT-CAB3000LDR and KT-CAB4000LDR metal cabinets
KT-LOCK KT-300 accessory, replacement firmware
KT-TAMPER KT-300 accessory, external isolation relay, single pole, double through (SPDT) for output RL1/RL2
KT-300FLASH KT-300 transformer, wire-in, 220 VAC/ 16 Vac (37 VA), CE approved
KT-RM1
TR1640W-220 Description
Expansion Modules Standard black metal cabinet for KT-PCxxxx Expansion modules (order key lock separately)
Model 8-Zone Input Expansion Module for KT-300
KT-4051CAB 4-Relay and COMBUS additional Power Supply Module for KT-300
KT-PC4108 16-Output Expansion Module for KT-300
KT-PC4204
KT-PC4216
22
