Readers & Cards

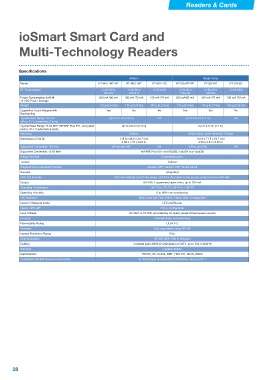

ioSmart Smart Card and
Multi-Technology Readers
Specifications
Model KT-MUL-MT-KP Mullion KT-MUL-SC KT-SG-MT-KP Single Gang KT-SG-SC
KT-MUL-MT KT-SG-MT
RF Technologies 13.56 MHz 13.56 MHz 13.56 MHz 13.56 MHz 13.56 MHz 13.56 MHz
125 kHz 125 kHz 100 mA /70 mA 125 kHz 125 kHz 100 mA /70 mA
Power Consumption (mA) @
12 VDC Peak / Average 200 mA /80 mA 100 mA /70 mA 200 mA/80 mA 100 mA /70 mA
Weight
Capacitive Touch Keypad with 110 g (0.24 lbs) 110 g (0.24 lbs) 105 g (0.23 lbs) 175 g (0.4 lbs) 170 g (0.37 lbs) 165 g (0.36 lbs)
Backlighting Yes No No Yes No No
Typical Read Range 125 kHz
ioProx ID-1 Credentials (Cards) Up to 5.1 cm (2.0 in) NA Up to 6.8 cm (2.7 in) NA
Typical Read Range 13.56 MHz MIFARE Plus EV1, encrypted
sector, ID-1 Credentials (Cards) Up to 3.8 cm (1.5 in) Up to 4.3 cm (1.7 in)
Mounting
Dimensions (H.W.D) Mullion Single Gang, North America / Europe
Supported Credentials 125 kHz 115.8 x 44.6 x 24.7 mm NA 115.8 x 71.5 x 24.7 mm NA
Supported Credentials 13.56 MHz 4.56 x 1.75 x 0.97 in 4.56 x 2.81 x 0.97 in
Wiring Terminal
Tamper ioProx and HID ioProx and HID
Wiegand Communication Formats
Sounder MIFARE Plus EV1 and ISO/IEC 14443A and 14443B
AES-128 Security
Output 6 screwless poles
Operating Temperature
Operating Humidity Optical
LED Indicator
Inputs in Wiegand mode Kantech SSF, Kantech XSF, 26-bit, 34-bit
Inputs in RS-485
Input Voltage Integrated
Housing
Flammability Rating From the ioSmart card to the reader and from the reader to the access control unit over RS-485.
Firmware
Ingress Protection Rating RS-485: 1 supervised open-drain, up to 750 mA
Communication
Cabling -40 °C to +70 °C (-40 °F to +158 °F)
Warranty
Certifications 0 to 95% non-condensing
Compatible RS-485 Access Control Units
Multi-Color bar: Red, Green, Yellow, Blue, Configurable
LED and Buzzer
2 to 4, configurable
8.5 VDC to 16 VDC (provided by UL listed, power limited power source)
Polycarbonate, smoked black
UL94 V-2
Fully upgradable using RS-485
IP55
RS-485 (AES-128) or Wiegand
3 twisted pairs AWG 22 unshielded or CAT5, up to 150 m (500 ft)
Limited Lifetime
FCC/IC, CE, UL294, NIST, FIPS 197, RoHS, WEEE
KT-400 (newer models without heatsinks only) and KT-1
28
