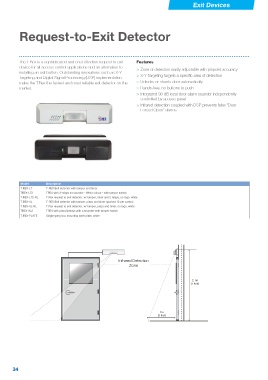

Page 36 - Kantech-Product_Guide_2018
P. 36
Exit Devices
Request-to-Exit Detector
The T-Rex is a sophisticated and cost-effective request to exit Features
device for all access control applications and an alternative to
installing an exit button. Outstanding innovations such as X-Y >> Zone of detection easily adjustable with pinpoint accuracy
Targeting and Digital Signal Processing (DSP) implementation >> X-Y Targeting targets a specific area of detection
make the T.Rex the fastest and most reliable exit detector on the >> Unlocks or shunts door automatically
market. >> Hands-free, no buttons to push
>> Integrated 90 dB local door alarm sounder independently
controlled by access panel
>> Infrared detection coupled with DSP prevents false “Door
Forced Open” alarms
Model Description
T.REX-LT T-REX Exit detector with tamper and timer
TREX-LT2 TREX with 2-relays no sounder - White colour - with tamper switch
T.REX-LT2-NL T.Rex request to exit detector, w/ tamper, timer and 2 relays, no logo, white
T.REX-XL T-REX Exit detector with tamper, piezo and timer (packed 12 per carton)
T.REX-XL-NL T.Rex request to exit detector, w/ tamper, piezo and timer, no logo, white
TREX-XL2 TREX with piezo/2relays with a sounder-with tamper switch
T.REX-PLATE Single-gang box mounting back plate, white
Infrared Detection
Zone
34
