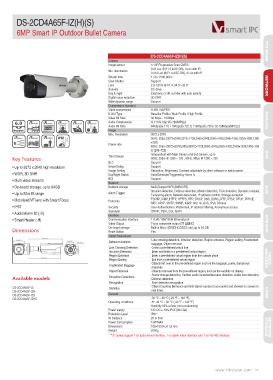

Page 77 - Hikvision Products Catalog 2015
P. 77
2CD4A65F-IZ(H)(S)
6MP Smart IP Outdoor Bullet Camera
DS-2CD4A65F-IZ(H)(S) PTZ DOME
Camera
Image sensor 1/1.8” Progressive Scan CMOS NETWORK
0.01 Lux @(F1.2,AGC ON), 0 Lux with IR
Min. illumination 0.014 Lux @(F1.4,AGC ON), 0 Lux with IR
1 s to 1/100,000 s
Shutter time Support
Slow Shutter 2.8-12mm @ F1.4, 94.5°~30.5°
Lens
Auto-iris DC drive
Day & night Electronic (-I: IR cut filter with auto switch)
Digital noise reduction 3D DNR ANALOG
Wide dynamic range Support
Compression standard
Video compression H.264 / MJPEG
H.264 Type Baseline Profile / Main Profile / High Profile
Video Bit Rate 32 Kbps – 16 Mbps
6.0 Audio Compression G.711/G.722.1/G.726/MP2L2
Megapixel CODEC Audio Bit Rate 64Kbps(G.711) / 16Kbps(G.722.1) / 16Kbps(G.726) / 32-128Kbps(MP2L2)
IP67 Max. Resolution 3072 x 2048
50Hz: 25fps (3072×2048,3072×1728,2560×2048,2560×1920,2048×1536,1920×1080,1280
Key Features Frame rate ×720) DVR
60Hz: 25fps (3072×2048),30fps(3072×1728,2560×2048,2560×1920,2048×1536,1920×108
• Up to 3072 x 2048 high resolution Third Stream 0,1280×720)
• WDR, 3D DNR Independent with Main Stream and Sub Stream, up to
• Multi-video streams 50Hz: 25fps @ 1280 × 720 ; 60Hz: 30fps @ 1280 × 720
• On-board storage, up to 64GB
• Up to 50m IR range BLC Support
• Motorized VF lens with Smart Focus
• IP67 Smart Defog Support
• Audio/Alarm IO (-S)
• Smart Heater (-H) Image Setting Saturation, Brightness, Contrast adjustable by client software or web browser NVR
Day/Night Switch Auto/Schedule/Triggered by Alarm In
Dimensions ROI Support
Network
Network storage NAS (Support NFS,SMB/CIFS)
Alarm Trigger Intrusion detection, Defocus detection, Motion detection, Face detection, Dynamic analysis,
Tampering alarm, Network disconnect, IP address conflict, Storage exception
Protocols TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE,
NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour
Security User Authentication, Watermark, IP address filtering, Anonymous access ATM DVR
Standard ONVIF, PSIA, CGI, ISAPI
Interface
Communication Interface 1 RJ45 10M/100M Ethernet port
Video Output 1Vp-p composite output (75 Ω/BNC)
On-board storage Built-in Micro SD/SDHC/SDXC slot, up to 64 GB
Reset Button Yes
Smart Feature-set Line crossing detection, Intrusion detection, Region entrance, Region exiting, Unattended VIDEO
Behavior Analysis baggage, Object removal ENCODER
Line Crossing Detection Cross a pre-defined virtual line
Available models Intrusion Detection Enter and loiter in a pre-defined virtual region CARD
Region Entrance Enter a pre-defined virtual region from the outside place
DS-2CD4A65F-IZ Region Exiting Exit from a pre-defined virtual region
DS-2CD4A65F-IZH Unattended Baggage Objects left over in the pre-defined region such as the baggage, purse, dangerous
DS-2CD4A65F-IZS Object Removal materials
DS-2CD4A65F-IZHS Exception Detections Objects removed from the pre-defined region, such as the exhibits on display.
Recognition Scene change detection, Sudden audio increase/decrease detection, Audio loss detection,
Statistics Defocus detection
General Face detection recognition
Object Counting (Entrance and Exit object number is accounted and showed on screen in
Operating conditions real time)
Power supply -30 °C – 60 °C (-22 °F – 140 °F),
-H: -40 °C – 60 °C (-40 °F – 140 °F)
Humidity 95% or less (non-condensing)
12V DC ± 10%, PoE (802.3at)
Protection Level IP67
IR Distance 20 to 50m NETWORK
STORAGE
Power Consumption 12W MAX
Dimensions 100×103.9×311.8 mm
Weight 2000g
* “-S” series support 1-ch audio in/out interface, 1-ch alarm in/out interface and 1-ch RS-485 interface
www.hikvision.com 77
