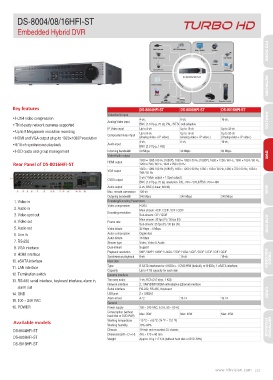

Page 233 - Hikvision Products Catalog 2015
P. 233
8004/08/16HFI-ST
Embedded Hybrid DVR
Box Cameras HD-SDI Cameras VGA / HDMI Speaker PTZ DOME
Dome Cameras
Speed Dome ACCESSIES INPUT OUTPUT Cell Phone
PC Client
Door Contact Router
DS-8004/08/16HFI-ST NETWORK
control
Alarm
Microphone USB Device USB Mouse Remote Control
Key features DS-8004HFI-ST DS-8008HFI-ST DS-8016HFI-ST ANALOG
• H.264 video compression Video/Audio input
• Third-party network cameras supported
• Up to 5 Megapixels resolution recording Analog Video input 4-ch, 8-ch, 16-ch,
• HDMI and VGA output at up to 1920×1080P resolution BNC (1.0 Vp-p, 75 Ω), PAL / NTSC self-adaptive
• 8/16-ch synchronous playback
• HDD quota and group management IP Video input Up to 8-ch Up to 16-ch Up to 32-ch
Rear Panel of DS-8016HFI-ST Composited video input Up to 8-ch Up to 16-ch Up to 32-ch
(Analog video + IP video) (Analog video + IP video ) (Analog video + IP video )
1. Video in
2. Audio in Audio input 4-ch, 8-ch, 16-ch,
3. Video spot out BNC (2.0 Vp-p, 1 KΩ)
4. Video out
5. Audio out Incoming bandwidth 20 Mbps 40 Mbps 80 Mbps DVR
6. Line in
7. RS-232 Video/Audio output
8. VGA interface
9. HDMI interface HDMI output 1920 × 1080 / 60 Hz (1080P), 1920 × 1080 / 50 Hz (1080P), 1600 × 1200 / 60 Hz, 1280 × 1024 / 60 Hz,
10. eSATA interface 1280 × 720 / 60 Hz, 1024 × 768 / 60 Hz
11. LAN interface
12. Termination switch VGA output 1920 × 1080 / 60 Hz (1080P), 1600 × 1200 / 60 Hz, 1280 × 1024 / 60 Hz, 1280 × 720 / 60 Hz, 1024 ×
13. RS-485 serial interface, keyboard interface, alarm in, 768 / 60 Hz
alarm out CVBS output 2-ch (1 Main output + 1 Spot output)
14. GND BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480
15. 100 ~ 240 VAC
16. POWER Audio output 2-ch, BNC (Linear, 600 Ω) NVR
Available models Max. remote connection 128-ch
DS-8004HFI-ST
DS-8008HFI-ST Outgoing bandwidth 240 Mbps 240 Mbps 240 Mbps
DS-8016HFI-ST
Encoding/Decoding Parameters
Video compression H.264
Encoding resolution Main stream: 4CIF / 2CIF / CIF / QCIF ATM DVR
Sub-stream: CIF / QCIF
Frame rate Main stream: 25 fps (P) / 30 fps (N)
Sub-stream: 25 fps (P) / 30 fps (N)
Video bitrate 32 Kbps ~ 8 Mbps
Audio compression OggVorbis
Audio bitrate 16 Kbps
Stream type Video, Video & Audio
Dual-stream Support VIDEO
ENCODER
Playback resolution 5MP / 3MP / 1080P / UXGA / 720P / VGA / 4CIF / DCIF / 2CIF / CIF / QCIF
Synchronous playback 8-ch 16-ch 16-ch
Hard disk
Type 8 SATA interfaces for 4 HDDs + 1 DVD-R/W (default), or 8HDDs; 1 eSATA interface
Capacity Up to 4 TB capacity for each disk
External interface
Two-way audio 1-ch, RCA (2.0 Vp-p, 1 KΩ)
Network interface 2; 10M/100M/1000M self-adaptive Ethernet interface
Serial interface RS-232, RS-485, Keyboard CARD
USB port 2 × USB2.0
Alarm in/out 4/2 16 / 4 16 / 4
General
Power supply 100 ~ 240 VAC, 6.3 A, 50 ~ 60 Hz
Consumption (without Max. 35W Max. 40W Max. 45W
hard disk or DVD-R/W)
NETWORK
Working temperature -10 ºC ~ +55 ºC (14 ºF ~ 131 ºF) STORAGE
Working humidity 10%~90%
Chassis 19-inch rack-mounted 2U chassis
Dimensions(W × D × H) 445 × 470 × 90 mm
Weight Approx. 8 kg / 17.6 lb (without hard disk or DVD-R/W)
